Can belts be repaired?

The answer is yes. In our understanding, the cost of a belt is expensive, so belt repair is an important way to avoid wasting resources. Belt repair methods can be roughly divided into three types, hot vulcanization, cold vulcanization and mechanical joints.

Conveyor belt is the main part of the conveyor machine.  In many industries such as cement, quarry factory, mining, plant and harbour etc, conveyor need to running 24 hours and 7 days for the whole year because productivity requirement is high. Especially for the long and heavy duty line, the working environment is very bad and changeable. For example, extreme north places with the temperature of -40℃（-40℉）bring a large challenge for the rubber belt strength and conveyor running effect, but equatorial places with very high temperature beyond 45℃ also bring a very big burden for the conveyor belt service life. Therefore, based on all above factors, no matter how famous brand and how strength conveyor belt it is, which are always made by rubber, as long as the material is rubber, damage will be never avoid. But the production volume is always high so the conveyor belt always cannot stop, every damage must be quickly repaired so that don’t influence the productivity. For quickly and effect repair for the conveyor belt, we search a complete repair tools system can meet the different requirements for different conveyor belt repair methods including cold splicing repair, hot splicing repair, mechanical quick repair...

Cold vulcanizing splicing repair:

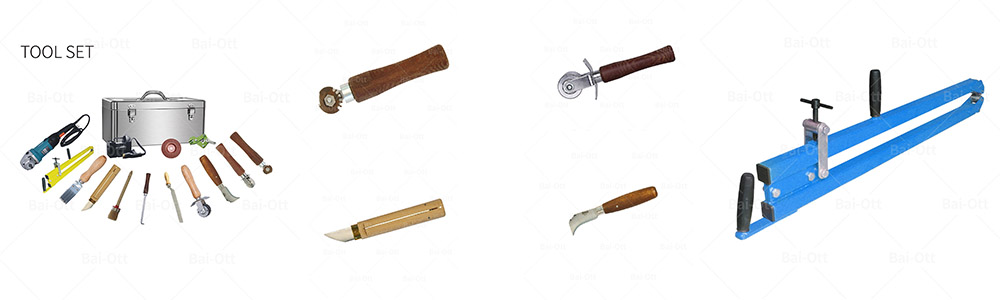

Cold splicing repair is one of the widest repair way in the conveyor belt splicing field. Repair materials usually are repair strips, repair patches, repair cement, repair glue. These materials are normal can be easily to buy. Repair splicing tools usually use the specific tools only for this field to save much personnel energy. Detailed speaking, cold splicing tools are mainly :

1. ply knife to Layer belt.

2. Multi function knife to cut materials and rubber.

3. Vice grip to scratch the player save much labour energy.

4. Measure tape help get the right splice place and cut the right places.

5. Rubber knife to cut or penetrate the big part and harder part of the conveyor belt.

6. Hand rasp to process the surfaces need to stick to improve the sticky strength.

7. Buffing disc and wheel can make the rubber surface flat and smooth.

8. Glue gun to make end small part maintenance after make the main part repair.

9. Needle roller, double acting roller, flat roller such as tools can help the repair parts keep long service life so that don’t easily break in future running.

10. The rest are some special tools will also used, ink box, glue brush, glue measure cut. They are not so special can found by your side but they are necessary.

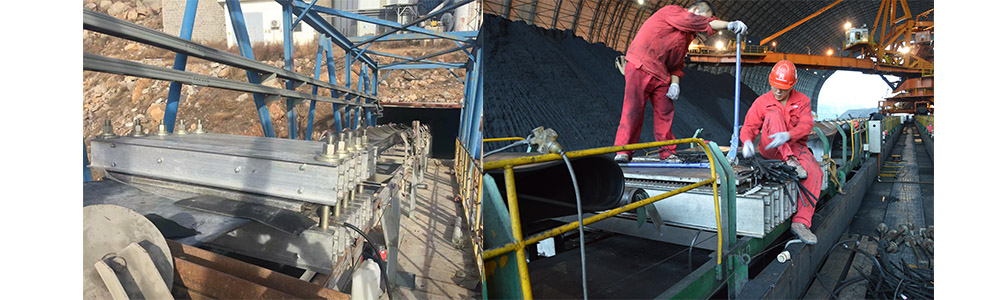

 Hot vulcanizing splicing repair:

Hot splicing repair is necessary when the damage part is large and cannot easily repair by only small materials. The splicing tools are more important for the hot splicing because materials are easier only need rubber materials and glue. But tools are complicate:

1. Splicing vulcanizing press machine is the first and most key part for this application.

2. Ply knife, rubber knife, Don carlos knife, multi functions knife, stripper knife are all knife need to be used in the pre-treatment of the splicing part.

3. Belt strippers, belt cutters are necessary because without them cannot make preprocessing for the conveyor belt only by manual labour.

4. Hardness measure, temperature measure, damp measure and pressure measure are needed to keep the hot splicing go on well in the vulcanizing process.

5. Also need small tools are easily found beside you to help you put forward the whole process.

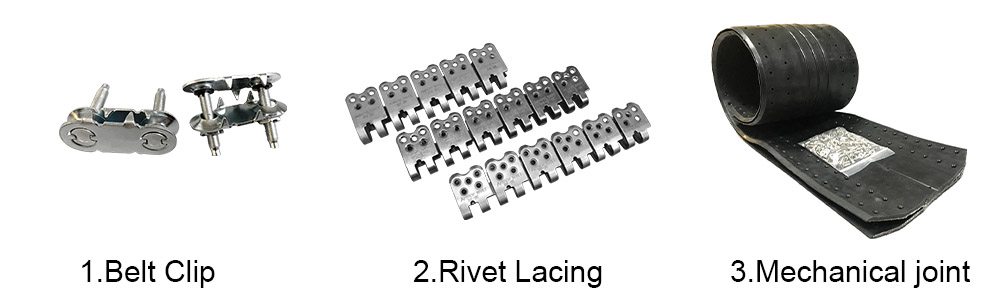

 Mechanical quick repair:

Above two repair methods are large damage need long splicing time, but when meet very urgent situation have no any much time to make detailed repair, the quick and efficiency way is mechanical way to repair in a short time. Apart from the belt fastener and various mechanical repair kits, also need some easily tools to quicker and more convenient, such as:

1. Angle grind and belt strippers to make preprocessing and after perfect steps for the part need to be repaired.

2. Special repair tools specific for the matched belt fastener or connector installations, which cannot be replaced by other.

3. Measure are necessary for this quick repair system.

 If a worker wants to do a good job, he must first sharpen his tools.  Right tools can not only help the worker save energy, can also save repair time to improve efficiency and productivity. Besides, it can also make the repair work more uniform so that prevent bring the most damage for the conveyor belt and repair it as much as close to the original conveyor belt. It is very important key part in the conveyor splicing field.

 By the way these tools are specific for conveyor maintenance because when produce them, our purpose is to give more convenient for this application, but when really using them, all rubber repair such as tire, drum coating and so on can all use them. For help new workers or technicians who are new in this field, we also make tools box for each application. One tools box including all tools what will be needed for the users’ repair purpose.Different sets for different purpose so the user needn’t spend much time on learning what need to be used and what need to be bought. Always update and upgrade is our attitude for the splicing tools products system.
