How to install the skirting rubber sheet

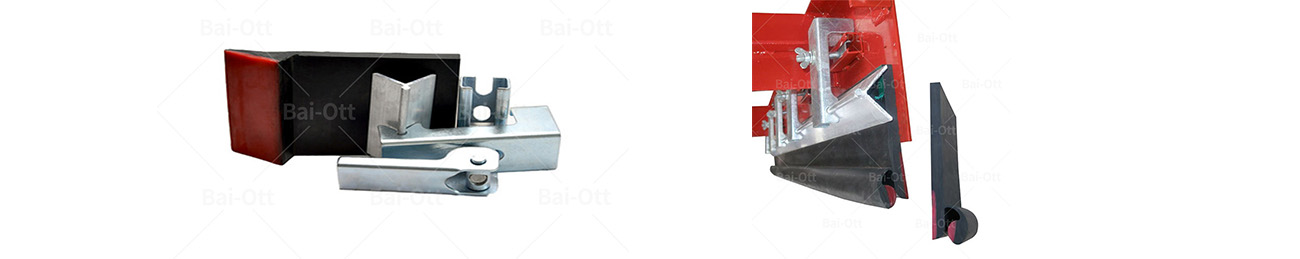

Fast fixation of apron by means of angle aluminium, clamps, etc.

1. Angle aluminum (40mm×40mm) is pressed and formed at one time.

Material: all aluminum, beautiful appearance, no rust, its top is a circular column, which is locked in the holder and does not fall off.

2. The base of the gripper is welded outside the side of the guide trough, and the slide-way is deep into the base, so that the gripper can move left and right along the base properly.

3. Rotate the compression handle manually and push it upwards (downwards) to the end when appropriate, which can exert enough pressure on the angle aluminum to maintain the position of the apron, and the compression handle will not loosen and fall off.

4. The holder is hot-dip galvanized, light in weight, good in corrosion resistance and no rust.

5. The fastening bolts are made of stainless steel 304, which will never rust. It is suitable for use in dark, humid, and even short-term water washing environments.

6. Except for the first installation, the base of the holder needs to be welded, and the other procedures and subsequent replacement of the skirt plate do not require any tools, and the installation and dis-assembly are extremely convenient and fast.

In a word, the installation method of the anti-overflow rubber skirting is very convenient. After confirming the installation position, fix the special fixing groove to the outside of the blanking groove by welding or riveting or self-tapping screws and so on types., and then install the muti-protective anti-overflow skirt. Slide the T-shaped glue block on the back of the side into the fixing slot.
