85 Duro Urethane Skirt Rubber Sealing

The 85 Duro Urethane Skirt Rubber Sealing is mainly used for sealing between conveyor belt and guide chute and between buffer bed and guide chute. After years of on-site working condition investigation, BAI-OTT rubber has organized scientific research forces, gathered contemporary rubber technology and excellent product engineering design, and developed the latest installation convenience in the world, thus the conveyor skirt rubber board with multi protection system is integrated. The conveyor skirt rubber board is made of polyurethane and natural rubber, and the part in contact with the belt is polyurethane. It adopts the double-layer sealing integrated structure of straight plate and skirt edge. The straight plate is close to the side of the guide groove, and the bottom is in contact with the belt to prevent material overflow. The skirt sealing part of the skirt adopts unilateral arc transition. When the belt deviates, it will not hurt the belt and skirt, and can automatically restore to the original state.

Equipment structure:

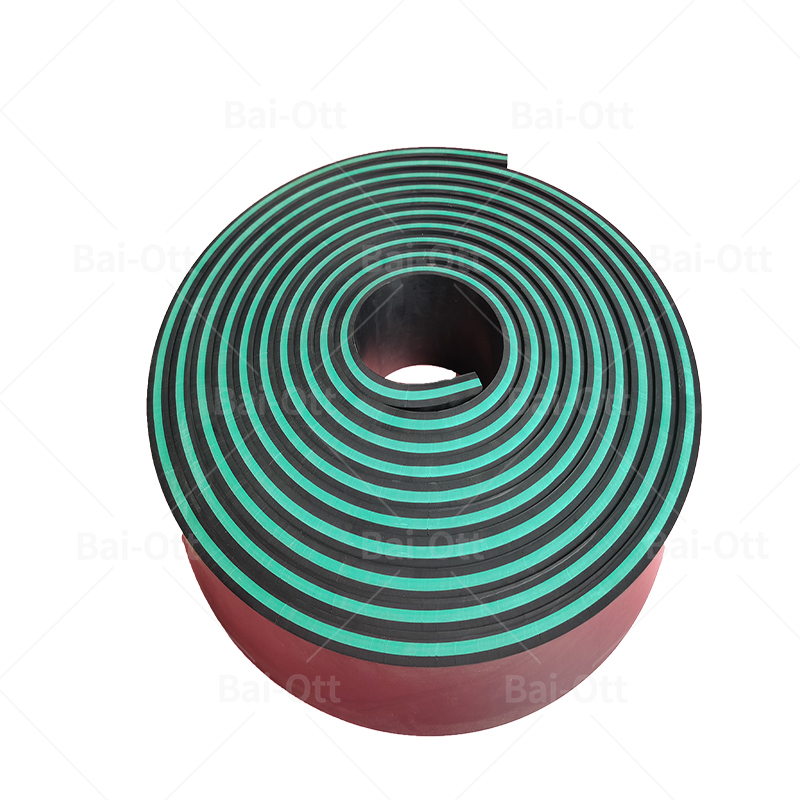

The main part of the conveyor skirt rubber board is black, which is made of high-quality imported natural rubber and styrene butadiene rubber. On the basis of keeping it straight, it increases the elasticity, so that the Red Multi protection sealing strip is closely attached to the conveyor belt. Even when the multi protection system reaches the service life, it can continue to perform the responsibility of anti overflow skirt and protect the investment of users. Multi protection and anti overflow system, T-shaped fixed rubber block, and the skirt body is made of one-time integrated thermal vulcanization, with compact and effective structure, strong and durable. The T-shaped fixed rubber block on the back can be removed in the manufacturing process according to customer requirements to adapt to the old installation methods in the past. Using three sealing strips for sealing, the efficiency of anti overflow skirt is 200% higher than that of ordinary single rubber, and there are more sealing spaces than that of double sealing, and the efficiency is 100% higher. The revolutionary way of adding semi solidified lubricant to pure natural rubber (NR) solves the problem of high wear resistance of anti overflow skirt and easy damage to belt. The material has flexible texture and excellent elasticity, which avoids the disadvantage of polyurethane (PU) that is not resistant to water, and has high wear resistance without damaging the conveyor belt.

• Double layer sealing, inner layer isolating material overflow, outer layer restraining dust flying.

• Polyurethane wear-resistant layer is compounded at the part in contact with the belt, which has long service life and does not damage the belt.

• The quick pressing device makes the installation and adjustment convenient and fast.

Technical Parameters:

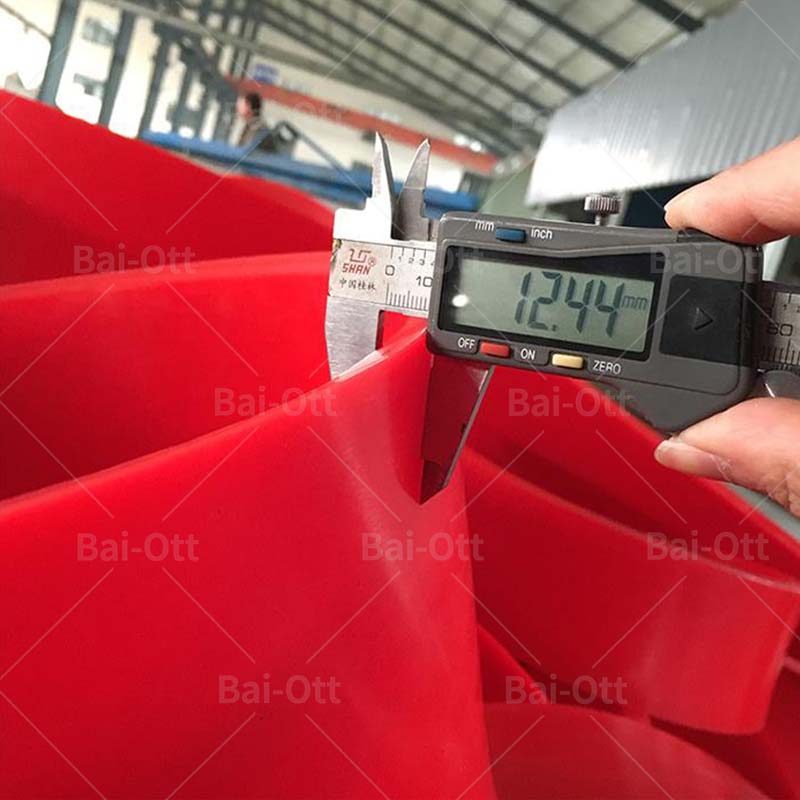

1. Thickness of main board: 15mm.

2. Width: 110mm-350mm

3. Length: equal to the length of the guide chute according to the actual needs of the site.

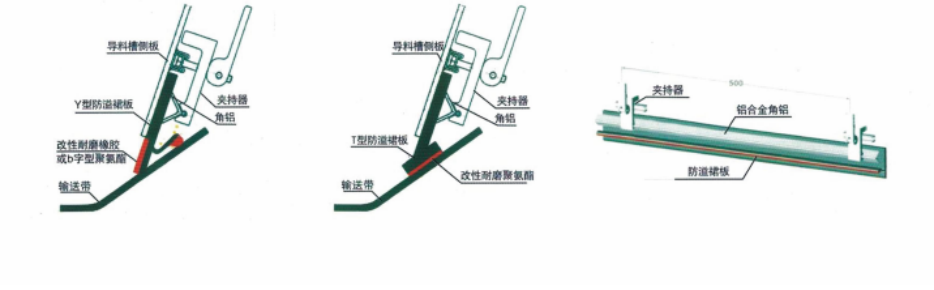

Skirt Rubber Type:

Y-shaped conveyor Skirt Rubber Board

T-shaped conveyor Skirt Rubber Board

I-shaped conveyor Skirt Rubber Board

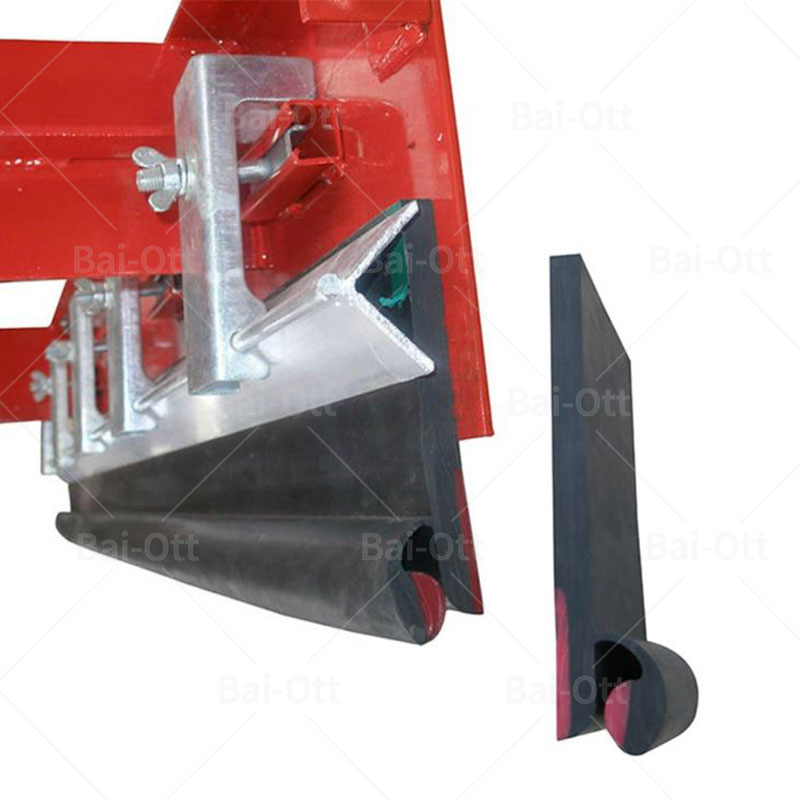

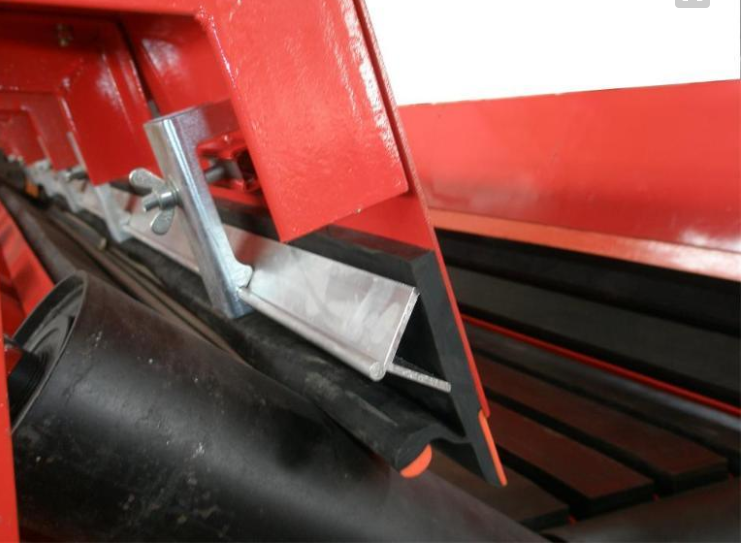

Skirt Rubber Installation:

1. Round head angle aluminum: 40mm×40mm, with high overall strength and greater pressing force on skirt.

2. Gripper: it is made of 3mm steel plate and hot-dip galvanized, with strong anti-corrosion performance.

3. The tightening bolts are made of 304 stainless steel, which does not rust and has excellent anti-corrosion performance, which can effectively ensure the smooth operation of the next loosening or clamping device.
