Adjustable Conveyor Impact Slider Bed Design
Brand: BAI-OTT or OEM
Feature: High elastic+Adjustable+High Quality
Material: PE+Rubber+Steel Bolt
MOQ: 1 Set
Lead time:Ready to ship in stock
View more Impact Beds&Bars from BAI-OTT
Adjustable Conveyor Impact Slider Bed&Bar

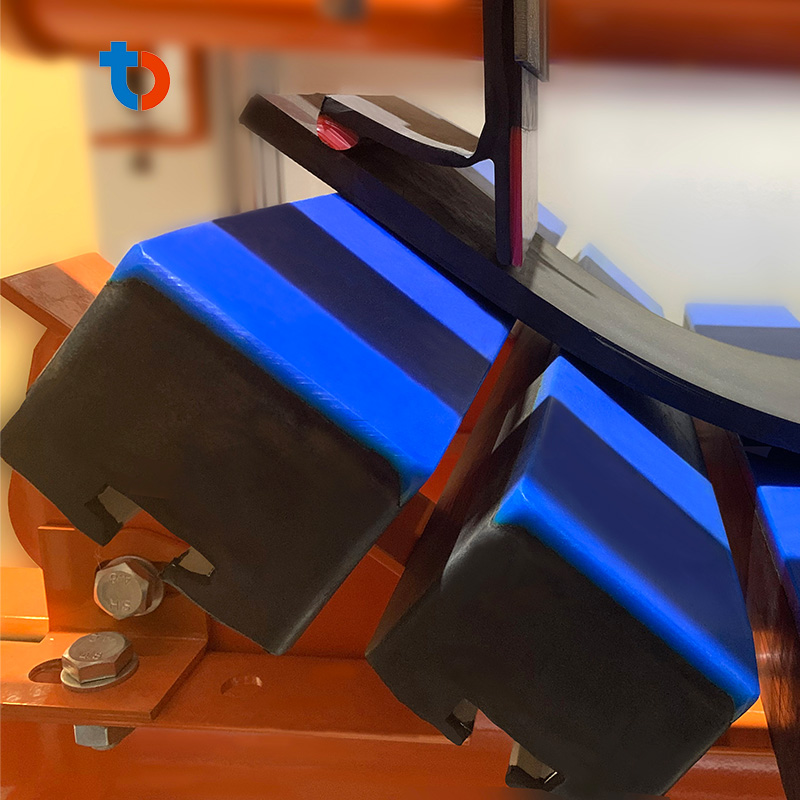

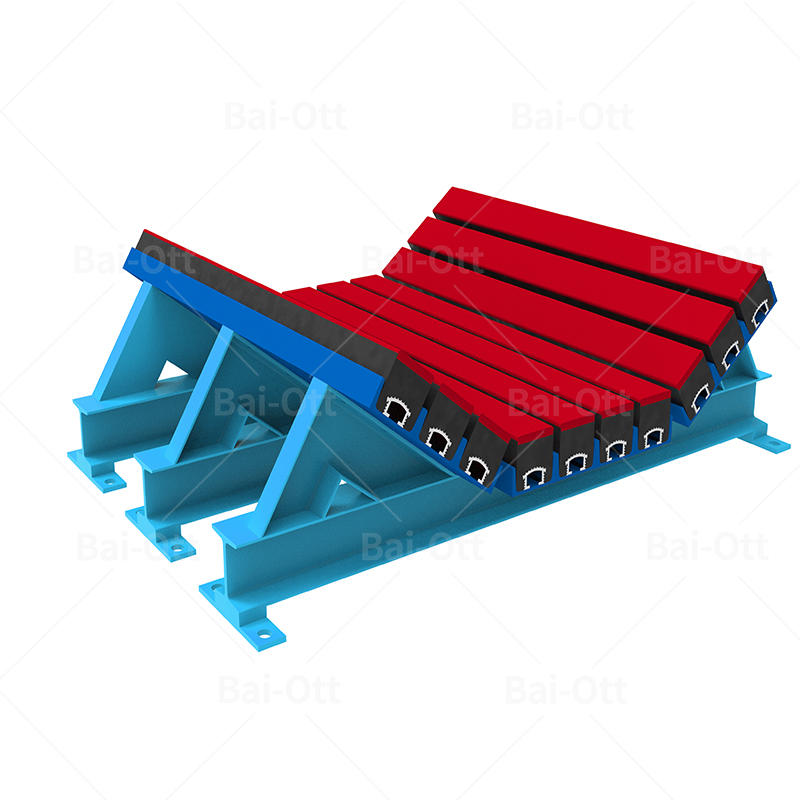

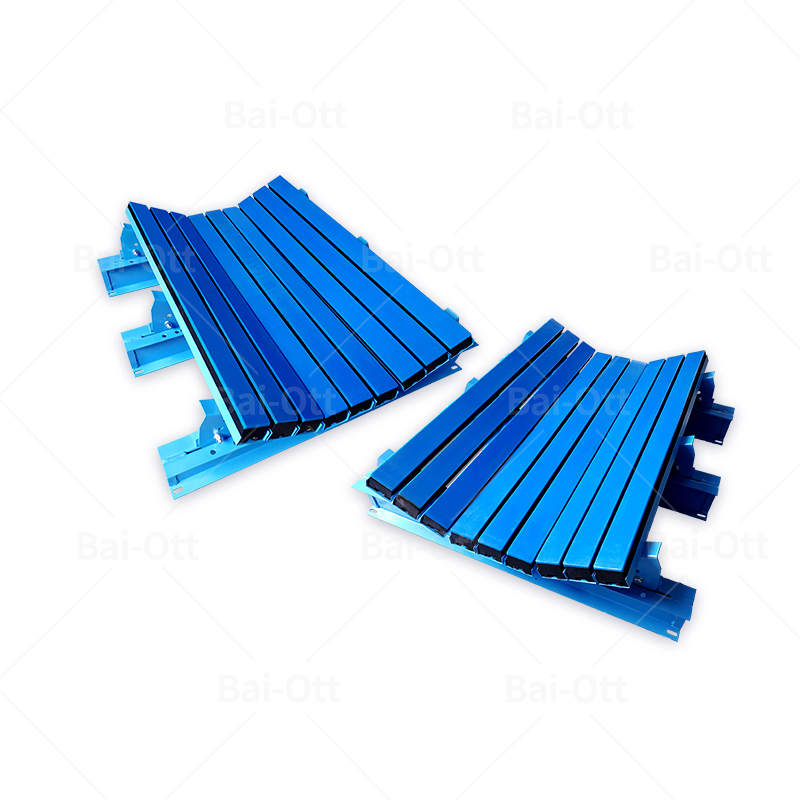

Loading Zone Impact Bed has the characteristics of adjustable,high wear-resistant,high elastic,retardant which used in the loading area of the belt conveyor to replace the traditional cushion rollers. It is designed to absorb impact loading which will dramatically reduce shock and stress loading to the structure.
|Item||Parameter||Standard Type||High Elastic Type||Downhole Type|
|Tensile breaking strength||Mpa||23||23||20|
|Elongation at break||%||300||300||250|
High Elastic Rubber Part
|Strength of Extension||Mpa||19||19||19|
|Elongation at break||%||400||400||400|
|Metal Part||Type||Aluminium Alloy|
|Bonding of PE&rubber||N/mm||≥10||≥10||≥10|
|Bonding of metal&rubber||N/mm||≥10||≥10||≥10|
Conveyor impact bed can effectively prevent the occurrence of uneven force on the conveyor belt and reduce the impact damage of the material
The surface material is smooth and wear-resistant UHMW-PE, which can reduce frictional resistance and prolong life
The middle layer of high elastic rubber of the impact bar can effectively absorb the impact of the material on the conveyor belt

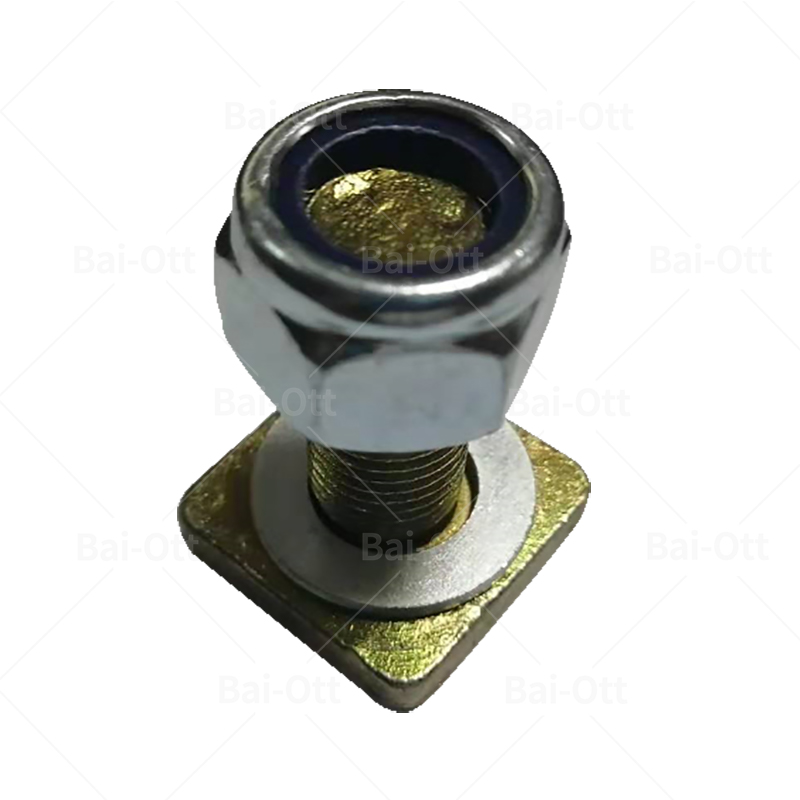

The bottom layer uses special high-strength steel parts, which is light and does not rust, easy to install, and the impact bar can be replaced by a single piece

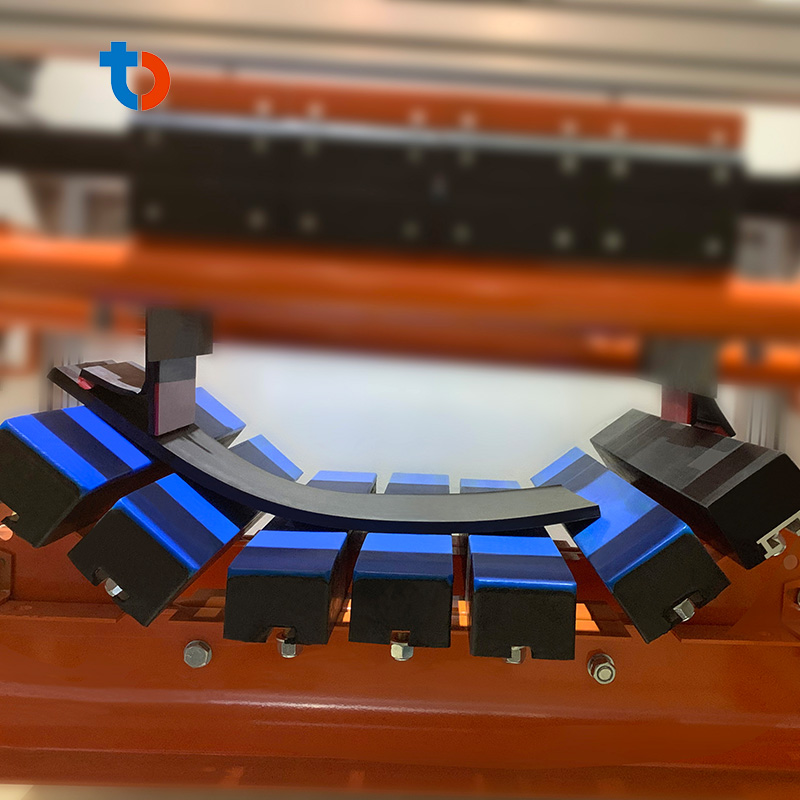

Conveyor impact bed can be disassembled and assembled according to different carrying capacity, bandwidth and slot angle to improve production efficiency
|Order NO.||Belt width/mm||Impact bar/mm||A/mm||B/mm||C/mm||L2/mm||Imapact bar||Weight/kg|
At present, our company's existing impact bars molds can process lengths of 1220mm, 1400mm, 1500mm,1524mm etc., and the width is between 100-300mm. Our daily output is about 150-200 pcs, which can basically meet the requirements of our customers.
When materials strongly drop impact bed, rubber part mainly plays a good buffering role by the physical elasticity. Therefore, the rubber elasticity must up to certain level.
As international requirements, the rubber part of impact strip should be about Shore A 55° ( Mining usage must be treated flame retardant rubber), if the hardness is too high, it will be easy to break.
Besides, tear resistance, tensile strength, elongation at break, adhesion strength of rubber and metal profiles are also influence the service life of the products.
Elastic rubber is generally divided into three thicknesses of 50mm, 75mm and 100mm, and the width is 100mm. The choice of thickness is mainly determined by factors such as the impact force or the diameter of the drop materials during the operation.
The hot vulcanization is generally formed in a hot vulcanizing machine in one time. Heat the UHWMPE plate with the elastic rubber in a high temperature environment to make the surface molecules active. And then bond the wear abrasive plate and the elastic rubber effectively prevent tackless during operation and increase service life.
