Constant Pressure Primary belt Cleaner

Brand: BAI-OTT or OEM

Belt Width: 650mm-2200mm

Feature: Wear-Resistant,Adjustment,Design

Tensile Strength: 53

Material: Polyurethane

MOQ: Set

Sample: Provide

Product Inspection:Available

Lead time: Ready to ship in stock

View more Conveyor Belt Cleaner from BAI-OTT

Conveyor Belt Cleaner Details from BAI-OTT

Catalogue

  • Description

    Constant Pressure Primary Belt Cleaner

    BAI-OTT is a professional manufacturer of conveyor belt cleaner and scraper in China. The cleaners we design and manufacture are Light duty PU primary belt CleanerHeavy duty primary PU belt scraperConstant pressure primary belt sweeper, Alloy primary belt cleaner (H type), Ceramic belt cleaner, Medium-sized primary conveyor sweeper, secondary scraper sweeper, second alloy sweeper,second constant pressure sweeper, universal alloy sweeper, Tail V-plow conveyor sweeper, central I-type conveyor cleaner, electric roller brush cleaner and sweeper blade. As we know,Primary belt cleaner is the most important part in conveyor belt cleaning system. It located closely under the head drum to make the first step of cleaning for the whole system. 90% residule materials can be cleaned by it in transportation. So it is necessary to guarantee the strength of frame and tensioners, the wear abrasive ability of blades, which influence products effect lot.


    Order No.Product NameBelt Width(mm)Blade Width(mm)Total Length(mm)
    7855165Constant Pressure Primary Belt CleanerB6506501650
    7855180Constant Pressure Primary Belt CleanerB8008001800
    7855110Constant Pressure Primary Belt CleanerB100010002000
    7855112Constant Pressure Primary Belt CleanerB120012002200
    7855114Constant Pressure Primary Belt CleanerB140014002400
    7855116Constant Pressure Primary Belt CleanerB160016002600
    7855118Constant Pressure Primary Belt CleanerB180018002700
    7855120Constant Pressure Primary Belt CleanerB200020002900
    7855122Constant Pressure Primary Belt CleanerB220022003100

    Further Dimensions on Demand.


    Advantage

    • The in-line scraper has a hollow buffer hole, which has good followability to various belts, and is matched with holes and pins.

    • The scraper and the fixed seat are combined with a dovetail groove, and there is a top tightening device to eliminate the clearance.

    • Aluminum alloy knife holder, surface anodized, not easy to rust.

    • It has a detachable fixing seat, which can be extracted from the side of the hopper, which is very easy to install or maintain.

    • The use of pre-pressure regulator (buffer spring group) can ensure a uniform and stable contact pressure between the scraper and the belt for a long time, and can be fine-tuned if necessary to ensure the scraping effect.

    • The position of the scraper can be adjusted by adjusting the screw of the scraper group, which is more suitable for the scene.

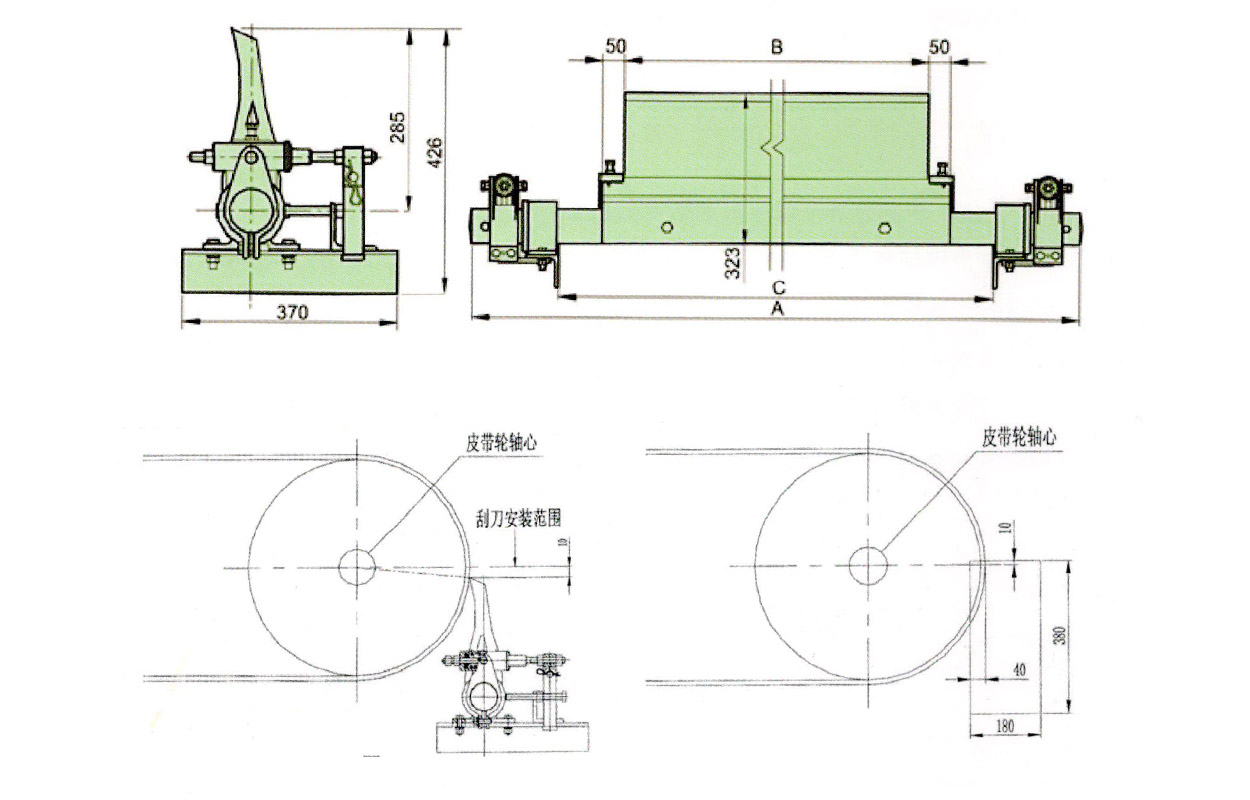

    Specifications


    Belt Width(mm)A(mm)B(mm)C(mm)D(pcs)Scraper Weight(KG)Total Weight(KG)
    178mm260mm301mm178mm260mm301mm
    65060065070016.51315.3375560
    800762800700181618.9416167
    100091410007001102023.6456873
    1200106712007002122823.6557580
    1400132114007002143233598691
    1600152416007002163637.8639398
    1800167618007002184042.568101105
    200018282000700220
    4447.283107112
    2200191222009002224841.988113118


    Quality Certifications

    Quality Certifications

    Applications

    Applications

    FAQ

    Questions & Answers
